Scootopia Lambretta LI, SX, TV, DL & GP Oil Seal set

£12.00 £10.00

In stock

SKU

TN829D4U

Full Oil Seal kit including Front Hub Seals.

More Information
Part Number	BUNDLE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

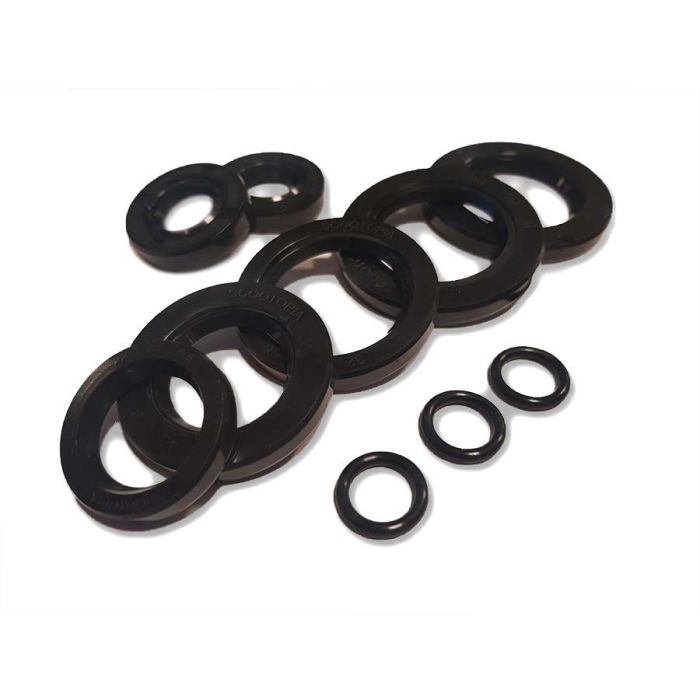

Scootopia made Lambretta series 2/3 & DL/GP double lip oil seal set with front hub seals, layshaft o ring & 2 rod o rings.

Includes:

Driveside Oil Seal Innocenti # 19012008 33 x 50 x 6
Mag Housing Outer Seal Innocenti # 19012039 25 x 42 x 6
Mag Housing Inner Seal Innocenti # 19012036 33 x 52 x 6
Kickstart Shaft Seal Innocenti # 19010016 22 x 32 x 5.5
Rear Hub Seal Innocenti # 19030032 32 x 45 x 6
Rear Brake Cam O RingInnocenti # 19031015
Clutch Arm O RingInnocenti # 19031015
Gear Selector Arm O Ring Innocenti # 19031015
Rear Axle O Ring Innocenti # 19030036
Front Axle Seal Innocenti # 17 x 32 x 7 (2 Supplied)

We have had a lot of success withthe new Scootopia Oil Seal kits, had0% issues with springs or rubber perishing. They are the correct grade rubber (NBR) and not Viton Rubber Seals the same as the ROLF Oil Seal kits.
If you need Gearbox Oil we suggestSilkolene ST90.

Other things you may need -

GASKET SET

DL/GP ENGINE BEARING SET

LI/SX/TV ENGINE BEARING SET

Sticky's Spanner's Manual says-"A blown drive side crankshaft seal can usually be defined by billowing white smoke from the exhaust. This has a different smell to two-stroke smoke. One test for this is blocking the tail pipe. If the oil seal is good ( and the exhaust has no leaks) then the engine should quickly stop. If it continues to run then the oil seal has probably failed".

From factory, these were originally fit to models -

Series One	LI125	LI150	-
Series Two	LI125	LI150	TV175
Series Three	LI125	LI150	LI150 Special	125 Special	SX150	SX200	TV175	TV200
DL / Grand Prix	125	150	200
